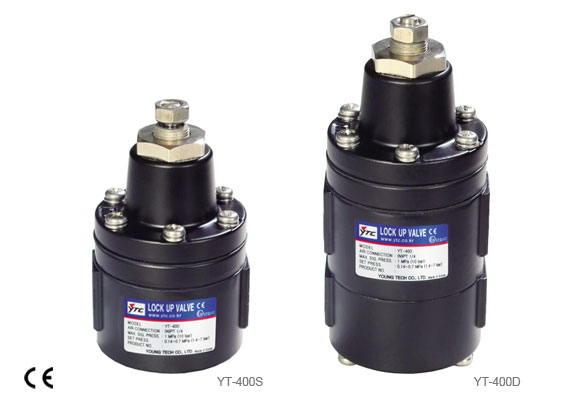

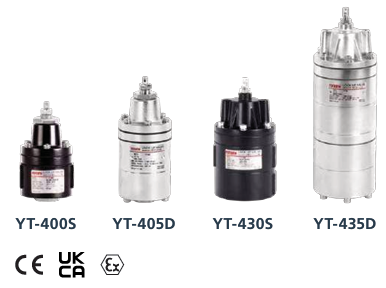

YT-400 Lock Up Valve
- YT-400 Lock Up Valve
- YT-405 Lock Up Valve
- YT-430 Lock Up Valve
- Product description: Lock Up Valve, YT-400/YT-405/YT-430 sense the main supply pressure and shuts down the air flow when the pressure is lower than setting level to avoid system shutdown or damages to pipelines. - Due to
Product introduction
|
Item.Type |
YT-400 |
YT-405 |
YT-430 |
|
|
Singnal Pressure |
0.14-0.7MPa (1.4-7bar) |
|||
|
Max.Supply Pressure |
Max.1MPa(10bar) |
|||
|
Look-Up Pressure |
Max.0.7MPa(7bar) |
|||
|
Differential Pressure |
Below 0.01MPa(0.1bar) |
|||
|
Ambient Temp |
(-20℃～70℃ )/ (-4～158°F) |
|||
|
Flow Capacity(Cv) |
0.9 |
1.8 |
||
|
Air Connection |
PT(NPT)1/4 |
NPT 1/4 |
NPT 3/8 |
|
|
Singnal Connection |
PT(NPT)1/4 |
NPT 1/4 |
NPT 1/4 |
|
|
Material |
Aluminum Diecasting |
Stainless Steel316 |
Aluminum Diecasting |
|
|
Weight |
Single |
0.45kg(1.0Ib) |
1.3kg(2.2Ib) |
1.3kg(2.2Ib) |
|
Double |
0.7kg(1.5Ib) |
1.5kg(3.3Ib) |
2.3kg(5.1Ib) |
|
