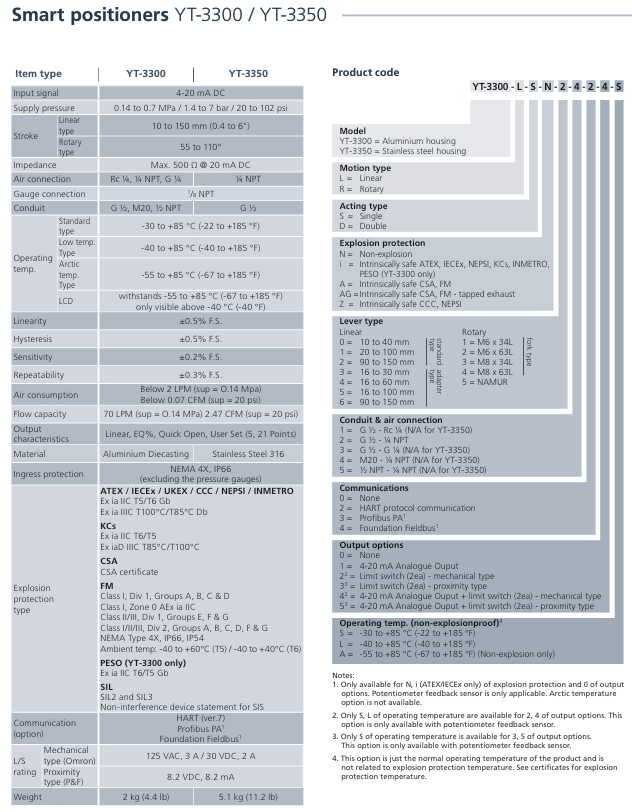

YT-3300(YT-3350) Smart Valve Positioner

Item.Type

YT-3300

YT-3350

Input Signal

4-20mA DC

Supply Pressure

0.14-0.7MPa(1.4-7bar)

Stroke

Linear Type

10-150mm

Rotary Type

0-90°

Impedance

Max.500Ω@20mA DC

Air Connection

PT(NPT)1/4

NPT1/4

Gauge Connection

PT(NPT)1/8

NPT1/8

Conduit

PF1/2(G1/2)

Ambient Temp

Standard Type

(-30℃～85℃)/(-22～185°F)

Low Temp Type

(-40℃～85℃)/(-40～185°F)

Explosion Temp

(-40℃～60℃ T5)/(-40℃～40℃ T6)

LCD Operaling Temp

(-30℃～85℃)/(-22～185°F)

Linearity

±0.5% F.S

Hysteresis

±0.5% F.S

Sensitivity

±0.2% F.S

Repeatability

±0.3% F.S

Air Consumption

Below 2LPM(sup=0.14MPa)

Flow Capacity

70LPM(sup=0.14MPa)

Output Characteristics

Linear,EQ%,Quick Open user set(16 Point)

Material

Aluminum Diecasting

Stainless Steel316

Enclosure

IP66

Explosion Proof Type

Exia IIC T5/T6

Weight

2kg(4.4Ib)

5.1kg(11.2Ib)
