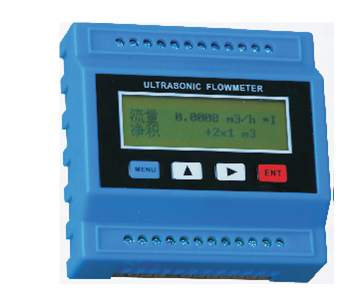

TUF-2000M Ultrasonic Flow Module

1. the features

1. High accuracy: accuracy can reached to 1 %.

2. Wide measuring range: Several types transducer for selection, pipe size from DN15mm to DN6000mm

3. High reliability: Low voltage, pulse transmission circuit, high measurement accuracy, Improve the service life and reliability.

4. Strong anti-interference ability: Adopt double balanced differential signal transmitting and receiving circuit to resist inverter, television tower, high tension line interference effectively.

5. Powerful Functions: Current output: 4-20mA, one channel, can be used for flow/heat transmitter;

6. OCT output: two channels, can be used for flow /heat switch;

7. Current input: 4-20mA, three channels, can be used for data collector;

8. Tri-wire resistance signal input (PT100): two channels, can be used for calorimeter.

9. Far transmission distance: Connecting module and secondary meter through RS-485 interface, transmission distance up to 1000m.

10. Support the heat measurement: measuring the heat through connect with the temperature sensor.

    3. Measurement of figure

4. optional flow sensor

The different fluid, pipe situation and installation way can choose different sensor. (different way to install and features please reference the measurement of figure.)

category	Pictures	Specifications	Model	Diameter	Temperature range	Size
Clamp-on transducer		small size	TS-2	DN15~DN100	-30~90℃	45×25×32mm
