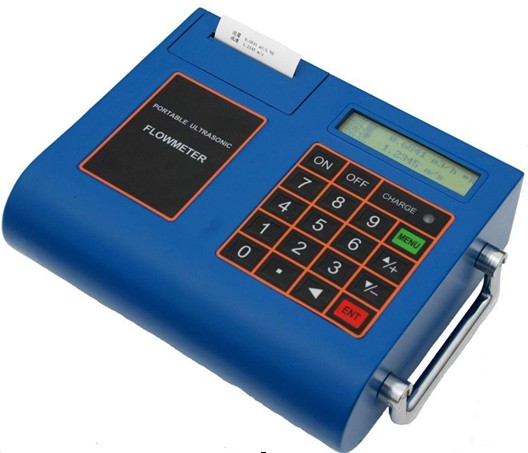

TUF-2000P Portable Ultrasonic Flowmeter
- Portable ultrasonic flowmeter
- ultrasonic flowmeter
- TUF-2000P
- Product description: TUF-2000P Portable Ultrasonic Flowmeter Portable Ultrasonic Flowmeter realizes the non-contact measurement of liquid flow.
Product introduction
-
product introduction
Portable Ultrasonic Flowmeter realizes the non-contact measurement of liquid flow. The host and sensor were installed in its pipe. Using with the temperature sensor. It is also used in tap water, heating, water conservancy, metallurgy, chemical industry, machinery, energy, etc. this series is the most important flow measuring instrument in the process of production as it can be used for production of wate, balance debugging, debugging, network monitoring, energy saving monitoring.
-
the features
high accuracy: accuracy can reached to 1 %.
Wide measuring range: Several types transducer for selection, pipe size from DN15mm to DN6000mm
Large capacity battery：Built-in rechargeable Ni-MH battery, provide over 12 hours of continuous operation
Built-in printer: can not only realize real-time screen printing, can also be timed print set in advance as much as more than 2 0 of the measured results.
Built-in data logger：Can be set up to more than 20 items of measurement results in advance within the storage to the SD card, convenient for data analysis and statistics.
RS485 communication interface: Can upload the first measurement results and setting the parameters of the machine.
Multiple input and output signals: output signal: 4-20mA, The pulse signal, signal relay; Input signal: 3 road 4-20 ma
3. Measurement of figure
|
Clip mounted |
scaffolding |
|
|
|
|
Easy to install, without broken tube, no pressure loss |
To simplify the installation process, shorten the installation time, improve the installation precision. Easy to install, without broken tube, no pressure loss. |
4. optional flow sensor
|
category |
Pictures |
Specifications |
Model |
Diameter |
Temperature range |
Size |
|
Clamp-on Transducer |
|
Small size |
TS-2 |
DN15~DN100 |
-30~90℃ |
45×25×32mm |
|
|
Medium size |
TM-1 |
DN50~DN700 |
-30~90℃ |
64×39×44mm |
|
|
|
Large size |
TL-1 |
DN300~DN6000 |
-30~90℃ |
97×54×53mm |
|
|
High temperature clamp-on transducer |
|
High temperature small size |
TS-2-HT |
DN15~DN100 |
-30~160℃ |
45×25×32mm |
|
|
High temperature medium size |
TM-1-HT |
DN50~DN700 |
-30~160℃ |
64×39×44mm |
|
|
|
High temperature large size |
TL-1-HT |
DN300~DN6000 |
-30~160℃ |
97×54×53mm |
|
|
scaffolding |
|
Standard |
HS |
DN15~DN100 < Related products
|
