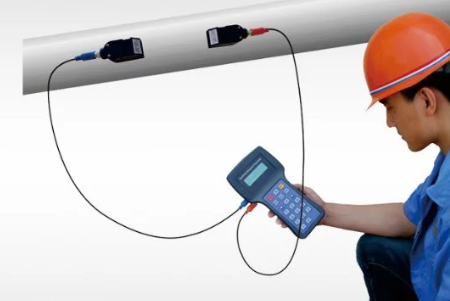

TUF-2000H Handheld Ultrasonic Flowmeter

Category

Performance and parameters

Main unit

principle

Time different principle, 4 bytes IEEE754 floating point arithmetic

Accuracy

Flow: be superior to ±1%

Display

4×8 character Chinese or 4×16 character western language Dot-matrix backlit LCD display，supported Chinese, English, Italian in three languages.

Signal output

1 way OCT pulse output(pulse width is 6~1000ms，the default is 200ms）

Data interface

Isolation of RS232 serial interface, can through the PC to upgrade flowmeter

Situation of the pipeline

Pipe material

Steel, aluminum, stainless steel, cast iron, copper, PVC, FRP etc. All quality of pipeline，allows for the lining.

Internal diameter of pipe

15~6000mm

Straight pipe

To meet the sensor installation point, 10 D, downstream 5 D, 30 D to the pump discharge for pipe diameter (D)

Measurement media

Items

Water, sea water, industrial wastewater, acid alkali, alcohol, beer, various oil etc all kinds can conduction a homogeneous liquid of ultrasonic.

Temperature

Temperature ：-30~160℃

Turbidity

10000ppm And the bubble content is small

Flow rate

0~±10m/s

Work environment

Temperature

Host ：-20~60℃；flow sensor：-30~160℃

Humidity

Host ：85% RH；sensor protection grade is IP67

Power supply

3 AAA built-in Ni-MH batteries (for over 12 hours of operation) after fully charged every time.AC90~260V adapter used AC90~260V power adapter, which can realize continuous measurement.

Power consumption

1.5W

Housing materials

Flaming retarding ABS

Handset weight

390g
