> YTC Valve Positioner-South Korea

YTC
Smart Valve Positioner

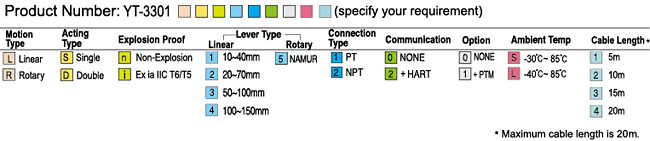

YT-3301
Product description: YT-3301 Smart positioner supplies remote functions and higher liabilities in high temperature and vibration environment. Smart Valve Positioner accurately controls valve stroke, according to input si
Inquiry

Item.Type		YT-3301L	YT-3301R
Input Signal		4-20mA DC
Supply Pressure		0.14-0.7MPa(1.4-7bar)
Stroke		10-150mm		0-90°
Impedance		Max.500Ω@20mA DC
Air Connection		PT(NPT)1/4
Gauge Connection		PT(NPT)1/8
Conduit		PF1/2(G1/2)
Ambient Temp	Sensor Oprating Temp	(-40℃～120℃)/(-40～248°F)
	Body Oprating Temp	(-30℃～85℃)/(-22～185°F)
	Explosion Temp	(-40℃～60℃ T5)/(-40℃～40℃ T6)
	LCD Operaling Temp	(-30℃～85℃)/(-22～185°F)
Linearity		±0.5% F.S
Hysteresis		±0.5% F.S
Sensitivity		±0.2% F.S
Repeatability		±0.3% F.S
Air Consumption		Below 2LPM(sup=0.14MPa)
Flow Capacity		70LPM(sup=0.14MPa)
Output Characteristics		Linear,EQ%,Quick Open user set(16 Point)
Material		Aluminum Diecasting
Enclosure		IP66
Explosion Proof Type		Exia IIC T5/T6
Weight	Body	2kg(4.4Ib)
	Sensor	0.6kg(1.3Ib)	0.9kg(2.0Ib)
