> YTC Valve Positioner-South Korea

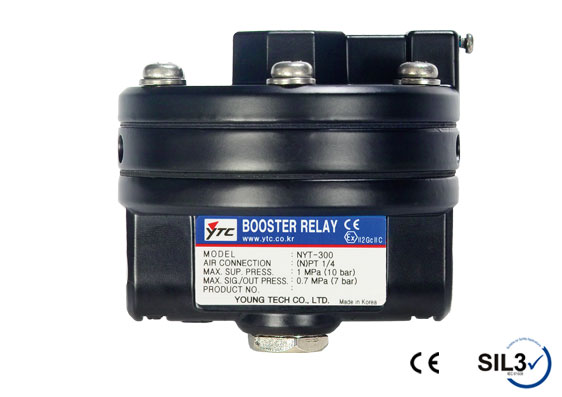

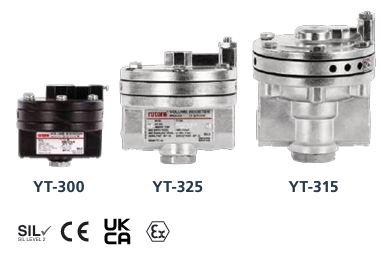

YTC YT300 series Volume booster relay
- YT-300/YT-305
- YT-310/YT-315
- YT-320/YT-325
- Product description: Volume booster relay, YT-300/YT-305/YT-310/YT-315/YT-320/YT-325 is used in pneumatic control valve which receives positioner’s output signal and supply air pressure actuator to reduce response and adj
Product introduction
|
Item.Type |
YT-300 YT-305 |
YT-320 YT-325 |
YT-310 YT-315 |
|||
|
Max.Supply Pressure |
1MPa(10bar) |
|||||
|
Max.Output Pressure |
0.7MPa(7bar) |
|||||
|
Singnal/Output Pressure Ratio |
1:1 |
|||||
|
Flow Capacity(Cv) |
exhaust |
1.32 |
2.08 |
5.24 |
||
|
output |
1.19 |
2.72 |
4.91 |
|||
|
Supply/Output Connection |
PT(NPT)1/4 |
NPT 1/2 |
NPT 3/4 |
|||
|
Singnal Connection |
PT(NPT)1/4 |
NPT 1/4 |
||||
|
Linearity |
±1% F.S |
|||||
|
Ambient Temp |
(-20℃～70℃ )/ (-4～158°F) |
|||||
|
Material |
YT-300;YT-320;YT-310 |
Aluminum Diecasting |
||||
|
YT-305;YT-325;YT-315 |
Stainless Steel316 |
|||||
|
Weight |
YT-300 |
YT-320 |
YT-310 |
0.5kg(1.1Ib) |
0.76kg(1.7Ib) |
2.3kg(5.1Ib) |
|
YT-305 |
YT-325 |
YT-315 |
1.3kg(2.9Ib) |
1.9kg(4.2Ib) |
5kg(11Ib) |
|
