> YTC Valve Positioner-South Korea

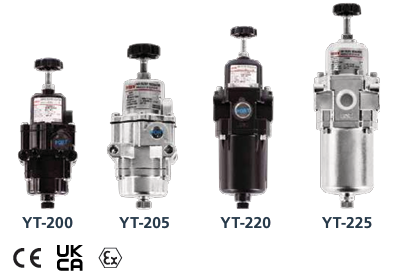

YT-200/YT-220 /YT-205/YT-225 Air Filter Regulator
- YTC
- Air Filter Regulator
- Product description: YT-200/YT-220 receives main air pressure and supplies to the desirable level pressure to a positioner or other devices. - Maintains desirable pressure level, regardless of fluctuation of pressure in
Product introduction
|
Item.Type |
YT-200 |
YT-220 |
YT-205 |
YT-225 |
|
|
Max.Supply Pressure |
1.7MPa(17bar) |
||||
|
Max.Output Pressure |
0.42MPa(A Type),0.84Mpa(B Type) |
||||
|
Air Connection |
PT(NPT)1/4 |
PT(NPT)1/2 |
NPT 1/4 |
NPT 1/2 |
|
|
Gauge Connection |
PT(NPT)1/4 |
PT(NPT)1/4 |
NPT 1/4 |
NPT 1/4 |
|
|
Ambient Temp |
(-20℃～70℃ )/ (-4～158°F) (Standard type) |
||||
|
Min.Filtering Size |
5micron |
||||
|
Material |
Aluminum Diecasting |
Stainless Steel316 |
|||
|
Weight |
0.6kg(1.7Ib) |
0.86kg(1.89Ib) |
1.4kg(3.0Ib) |
2.1kg(4.6Ib) |
|
