> YTC Valve Positioner-South Korea

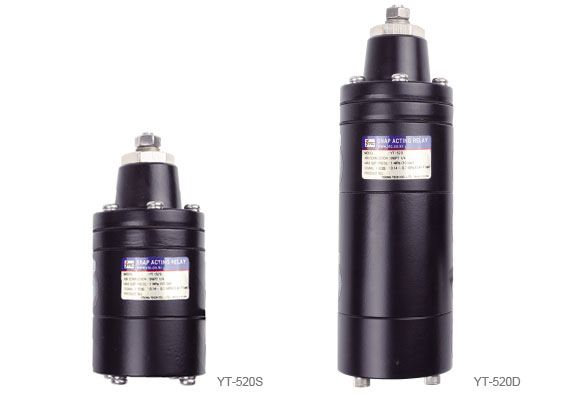

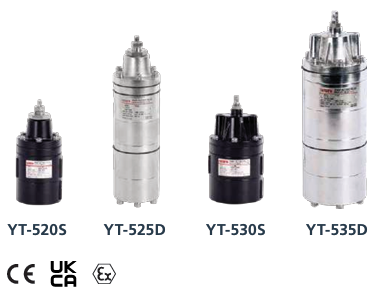

YT-500 Snap Acting Relay
- Snap Acting Relay
- high accuracy
- Product description: Snap Acting Relay, YT-520/YT-525/YT-530 senses supply pressure and changes the direction of the air flow when supply pressure is lower than setting pressure. It also provides "Fail-Position" function
Product introduction
|
Item.Type |
YT-520 |
YT-525 |
YT-530 |
|
|
Singnal Pressure |
0.14-0.7MPa (1.4-7bar) |
|||
|
Max.Supply Pressure |
1MPa(10bar) |
|||
|
Ambient Temp |
(-20℃～70℃ )/ (-4～158°F) (Standard type) |
|||
|
Singnal Connection |
NPT 1/4 |
|||
|
In/Output Connection |
NPT 1/4 |
NPT 1/4 |
NPT 3/8 |
|
|
Flow Capacity(Cv) |
0.9 |
0.9 |
1.8 |
|
|
Material |
Aluminum Diecasting |
Stainless Steel316 |
Aluminum Diecasting |
|
|
Weight |
Single |
0.73kg(1.0Ib) |
1.66kg(3.7Ib) |
1.3kg(2.2Ib) |
|
Double |
1.2kg(1.5Ib) |
3.1kg(6.3Ib) |
2.3kg(5.1Ib) |
|
