> YTC Valve Positioner-South Korea

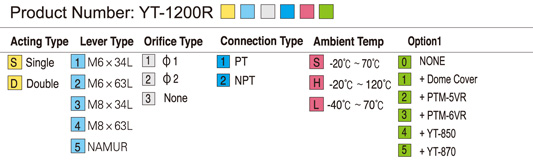

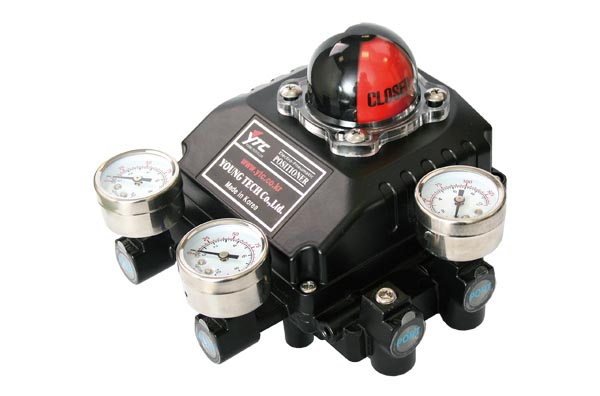

YT-1200R Pneumatic Positioner
- YT-1200R
- Pneumatic Positioner
- YTC
- Product description: The Pneumatic Pneumatic Positioner YT-1200 series are used for pneumatic valve actuators by means of pneumatic controller or control systems with an output signal of 3 to 5 psi or split ranges. - Th
Product introduction
|
Item.Type |
Single |
Double |
|
Input Signal |
0.02-0.1Mpa(0.2-1bar) |
|
|
Supply Pressure |
0.14-0.7MPa(1.4-7bar) |
|
|
Stroke |
0-90° |
|
|
Air Connection |
PT(NPT)1/4 |
|
|
Gauge Connection |
PT(NPT)1/8 |
|
|
Enclosure |
IP66 |
|
|
Ambient Temp |
(-20℃～70℃ )/ (-4～158°F) |
|
|
Linearity |
±2% F.S |
|
|
Hysteresis |
±1% F.S |
|
|
Sensitivity |
±0.5% F.S |
|
|
Repeatability |
±0.5% F.S |
|
|
Air Consumption |
2.5LPM(sup=0.14MPa) |
|
|
Flow Capacity |
80LPM(sup=0.14MPa) |
|
|
Material |
Aluminum Diecasting |
|
|
Weight |
1.7kg(3.1Ib) |
|
