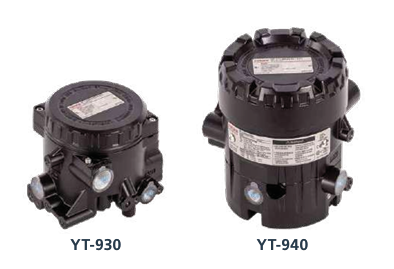

YT930 IP Converter

Item.Type

YT-930

Input Signal

4-20mA DC

Output Signal

Standard

0.02-0.1Mpa(0.2-1.0bar)

Multirange

0-0.12Mpa(0-1.2bar)

0.04-0.2Mpa(0.4-2.0bar)

0-0.23Mpa(0-2.3bar)

Supply Pressure

Standard

0.12-0.16MPa(1.2-1.6bar)

Minimum

0.2 bar graeter than the maximum calibrated output pressure

Maximum

0.24Mpa(2.4bar)

Explosion Proof

Ex ia IIC T5/T6

Air Consumption

Below 2LPM(sup=0.14Mpa)

Flow Capacity

70LPM(sup=0.14MPa)

Repeatability

±0.3% F.S

Explosion Temp

(-40-85℃ T5)/ (-40-75℃ T6)

Operating Temp

(-30-85℃)/(-22-185°F)

Hysteresis

±0.5% F.S

Sensitivity

±0.2% F.S

Linearity

±0.5% F.S

Air Connection

(N)PT 1/4

Conduit

PF1/2(G1/2)

Protection

IP66

Required Operating Voltage

Min 6.0V(at 4mA)

Max 7.2V(at 20mA)

Material

Aluminum Diecasting

Weight

3kg(6.61Ib)
