> YTC Valve Positioner-South Korea

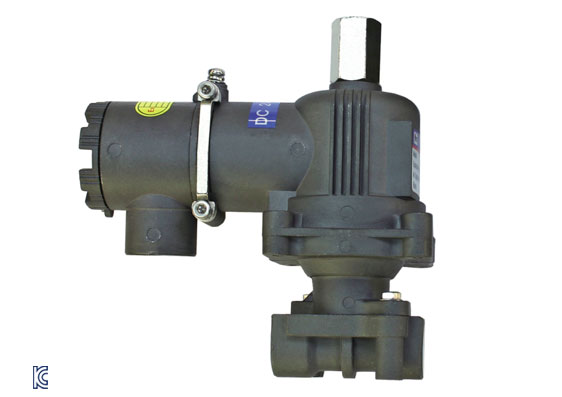

YT-700 Explosion proof type 3way solenoid valve
- Explosion proof type
- Replacement of coil is easy
- high durability
- Product description: Explosion proof type 3way solenoid valve, YT-700S/YT-700D series outputs pressure to valves or changes output port direction. - Explosion proof type (ExdIICT6) solenoid valve. - Replacement of coi
Product introduction
|
Item.Type |
YT-700 |
||
|
3way |
4way |
||
|
Max.Supply Pressure |
0-0.4MPa 0-0.7Mpa |
0.1-1MPa |
|
|
Flow Capacity(Cv) |
Output |
0.2(￠3)at 0.4MPa |
0.75 |
|
0.084(￠1.6)at 0.7MPa |
|||
|
Exhaust |
0.093 |
N/A |
|
|
Rating Current |
AC 220V |
60mA(11w) |
30mA(6.6w) |
|
AC 110V |
130mA(12w) |
50mA(5.5w) |
|
|
DC 24V |
580mA(14w) |
160mA(3.8w) |
|
|
Frequency |
50-60Hz |
||
|
Explosion Proof type |
Exd IIC T6 |
||
|
Connection Type |
PT(NPT)1/4 |
||
|
Conduit |
PF1/2(G1/2) |
||
|
Coil Insulation Grade |
Class E |
||
|
Ambient Temp |
Standard |
(-20℃～70℃ )/ (-4～158°F) |
|
|
Explosion |
(-20℃～50℃ )/ (-4～122°F) |
||
|
Weight |
0.8kg(1.8Ib) |
0.9kg(2.0Ib) |
|
