> YTC Valve Positioner-South Korea
YT800 Visual position indicator
- position indicator
- All plastic body
- YT800
- Product description: Visual position indicator - Easy adjustment of cam position - 6 contacts of terminal ports - All plastic body - Compatibility with any rotary motion actuator
Product introduction
|

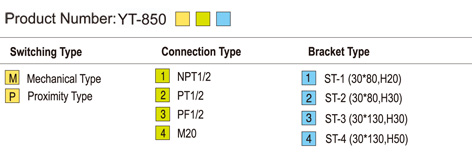

Item.Type |
YT-850M |
YT-850P |
|
Switch Type |
Mechanical Switch x 2 |
Proximity Sensor x 2 |
|
Switch Rating |
AC:250V 3A,125V 5A DC:250V 0.2A,125V 0.4A,30V 4A |
12-24V DC(Autonics) (Operating valtage:10-30V DC) |
|
Enclosure Protection |
IP67 |
|
|
Ambient Temp |
-20℃～80℃ |
|
|
Conduit Entry |
NPT1/2(PT1/2,PF1/2,M20,PG13.5) |
|
|
Terminal |
8 Points |
|
|
Mouting Bracket |
NAMUR VDI/VDE 3845,ISO5211 |
|
|
Material |
Aluminum Diecasting |
|
|
Weight |
880g(1.94b) |
|
|

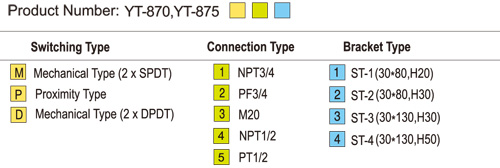

Item.Type |
YT-870M YT-875M |
YT-870P YT-875P |
YT-870D YT-875D |
|
|
Switch Type |
Mechanical Switch x 2 |
Proximity Sensor x 2 |
Mechanical Switch x 2 |
|
|
Switch Rating |
AC:250V 3A,125V 5A DC:250V 0.2A,125V 0.4A,30V 4A |
12-24V DC(Autonics) (Operating valtage:10-30V DC) |
AC:125 or 250V 10A 480V 2A |
|
|
Enclosure Protection |
IP67 |
|||
|
Explosion Proof |
Exd IIC T6 |
|||
|
Ambient Temp |
-20℃～60℃ |
|||
|
Conduit Entry |
NPT1/3(PF3/4,M20) |
|||
|
Terminal |
8 Points |
|||
|
Mouting Bracket |
NAMUR VDI/VDE 3845,ISO5211 |
|||
|
Material |
YT-870 |
Aluminum Diecasting |
||
|
YT-875 |
Stainless Steel316 |
|||
|
Weight |
YT-870 |
1.5Kg(3.3Ib) |
||
|
YT-875 |
3.5Kg(7.7Ib) |
|||
