> YTC Valve Positioner-South Korea

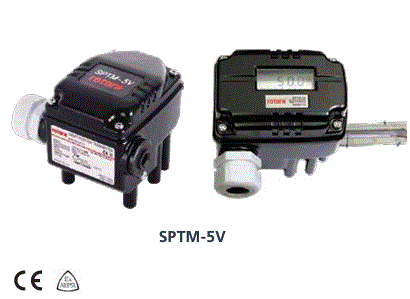

SPTM Position Transmitter
- Position Transmitter
- SPTM
- Product description: Position Transmitter is accessory for control valve. When installing the transmitter, please be sure to read manual for control valve as well.

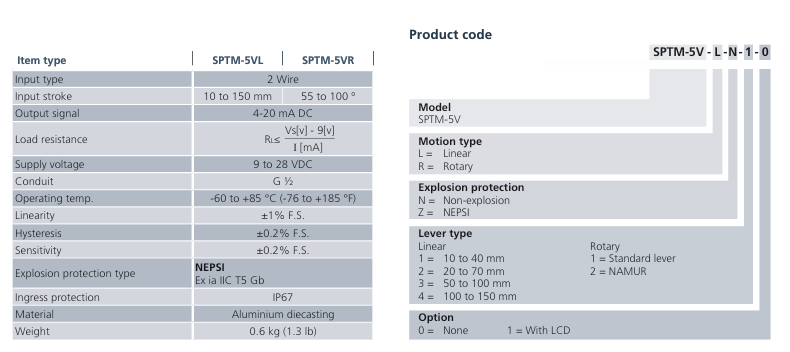

Product introduction
|
Item.Type |
SPTM-5VL |
SPTM-5VR |
|
|
Input Type |
2Wire |
||
|
Input Signal |
0-30° |
0-90° |
|
|
Output Signal |
4-20mA |
||
|
Load Resistance |
Max.600Ω @ 28VDC |
||
|
Supply Voltage |
9-28V DC |
||
|
Noise Range |
50mV p.p |
||
|
Conduit |
PF1/2 (G 1/2) |
||
|
Enclosure |
IP67 |
||
|
Explosion Proof type |
Ex ia IIC T6 |
||
|
Ambient Temp |
Oprating |
(-40℃～85℃ )/ (-40～185°F) |
|
|
Explosion |
(-40℃～60℃ )/ (-4～140°F) |
||
|
LCD Operating |
(-30℃～85℃ )/ (-22-185°F) |
||
|
Linearity |
±1%F.S |
||
|
Hysteresis |
±0.2%F.S |
||
|
Sensitivity |
±0.2%F.S |
||
|
Material |
Aluminum Diecasting |
||
|
Weight |
0.6kg(1.3Ib) |
||
|
Item.Type |
SPTM-6V |
SPTM-65V |
|
|
Connection Type |
2Wire |
||
|
Input Signal |
Linear type |
0-30° |
|
|
Rotary type |
0-90° |
||
|
Output Signal |
4-20mA |
||
|
Load Resistance |
Max.880Ω @ 28VDC |
||
|
Supply Voltage |
10-30V DC |
||
|
Noise Range |
50mV p.p |
||
|
Conduit |
PF3/4 (G 3/4) |
||
|
Ambient Temp |
Oprating |
(-40℃～85℃ )/ (-40～185°F) |
|
|
Explosion |
(-40℃～60℃ )/ (-4～140°F) |
||
|
LCD Operating |
(-30℃～85℃ )/ (-22-185°F) |
||
|
Linearity |
±1%F.S |
||
|
Hysteresis |
±0.2%F.S |
||
|
Sensitivity |
±0.2%F.S |
||
|
Explosion Proof type |
Ex ia IIC T6 |
||
|
Enclosure |
IP67 |
||
|
Material |
Aluminum Diecasting |
Stainless Steel316 |
|
|
Weight |
1.3kg(2.9Ib) |
2.8kg(6.17Ib) |
|
