> YTC Valve Positioner-South Korea

TMP-3000
YTC

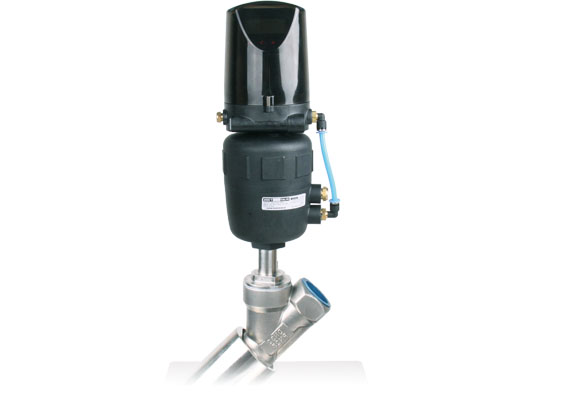

TMP-3000 Smart Valve Positioner
Product description: TMP-3000 Smart Valve Positioner accurately controls valve stroke, according to input signal of 4-20mA, which is being input from the controller. In addition, built-in micro-processing operator optimiz
Inquiry

Item.Type	TMP-3000
Power Supply	24VDC ±10%
Input Signal	0/4…20mA, 0…5/10V
Residual Ripple	10%,Not industrial DC
Power Consumption	﹤4W
Output	4-20mA
Output characteristics	Linear,EQ%,Quick Open user set(16 Point)
Ambient Temp	-10℃～60℃
Supply Pressure	0-0.7Mpa(0-7bar)
Air Consumption	0LPM
Flow Capacity	20/50LPM
Filterring Size	5micron
Acting Type	Single 2 solenoid valves Double 2 solenoid valves
Stroke	5-50mm
Air Connection	G1/8(￠6mm tube)
Conduit	2-M16*1.5(with screw lerminals)
Enclosure	IP66
Body Meterial	PPS
Cover Meterial	PC
Weight	520g
