> YTC Valve Positioner-South Korea

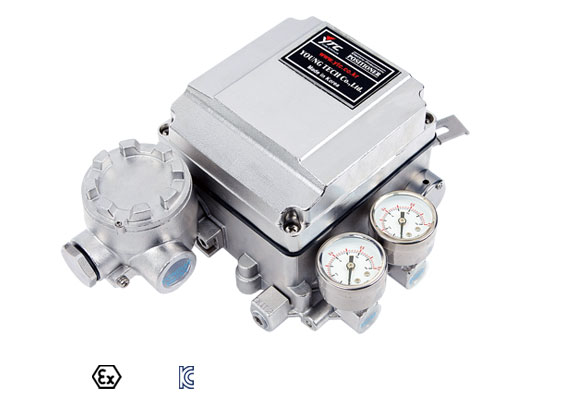

YT-1050 Electro Pneumatic positioner
- Electro Pneumatic positioner
- YTC positioner
- YT-1050
- Product description: YT-1050, the Electro Pneumatic positioner is used for operation of pneumatic valve actuators by means of electrical controller or control system with an analog output signal of DC 4 to 20mA or split r

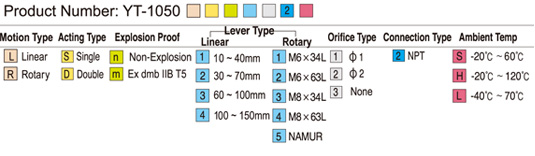

Product introduction
|
Item.Type |
Single |
Double |
||
|
Input Signal |
4-20mA DC |
|||
|
Impedance |
250±15Ω |
|||
|
Supply Pressure |
0.14-0.7MPa(1.4-7bar) |
|||
|
Stroke |
10-150mm |
0-90° |
||
|
Air Connection |
NPT 1/4 |
|||
|
Gauge Connection |
NPT 1/8 |
|||
|
Conduit |
PF1/2(G1/2) |
|||
|
Explosion Proof |
Ex dmb IIB T5 |
|||
|
Enclosure |
IP66 |
|||
|
Ambient Temp |
Operaling |
(-20℃～70℃ )/ (-4～158°F) |
||
|
Explosion |
(-20℃～60℃ )/ (-4～140°F) |
|||
|
Linearity |
±1% F.S |
±2% F.S |
||
|
Hysteresis |
±1% F.S |
|||
|
Sensitivity |
±0.2% F.S |
±0.5% F.S |
||
|
Repeatability |
±0.5% F.S |
|||
|
Air Consumption |
2.5LPM(sup=0.14MPa) |
|||
|
Flow Capacity |
80LPM(sup=0.14MPa) |
|||
|
Material |
Stainless steel 316 |
|||
|
Weight |
5.7kg(12.6Ib) |
|||
