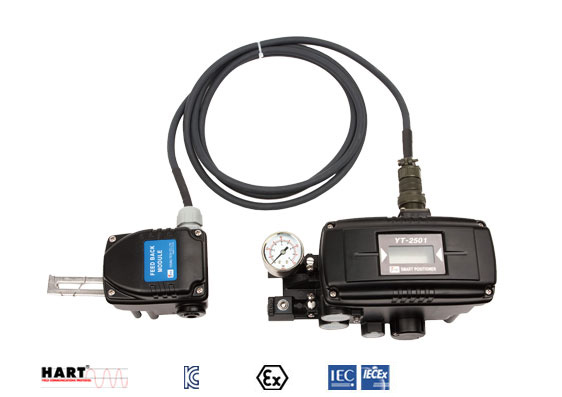

YT-2501 Smart positioner

Item.Type

YT-2501L

YT-2501R

Input Signal

4-20mA DC

Supply Pressure

0.14-0.7MPa(1.4-7bar)

Stroke

10-150mm

0-90°

Impedance

Max.500Ω@20mA DC

Air Connection

PT(NPT)1/4

Gauge Connection

PT(NPT)1/8

Conduit

PF1/2(G1/2)

Ambient Temp

Sensor Oprating Temp

(-40℃～120℃)/(-40～248°F)

Body Oprating Temp

(-30℃～80℃)/(-22～176°F)

Explosion Temp

(-40℃～60℃ T5)/(-40℃～40℃ T6)

Linearity

±0.5% F.S

Hysteresis

±0.5% F.S

Sensitivity

±0.2% F.S

Repeatability

±0.3% F.S

Air Consumption

Fail Freeze

0.01LPM(sup=0.14MPa)

Fail Safe

6LPM(sup=0.14MPa)

Flow Capacity

60LPM(sup=0.14MPa)

Output Characteristics

Linear,EQ%,Quick Open user set(16 Point)

Material

Aluminum Diecasting

Enclosure

IP66

Explosion Proof Type

Exia IIC T5/T6

Weight

Body

1.5kg(3.3Ib)

Sensor

0.6kg(1.3Ib)

0.9kg(2.0Ib)
