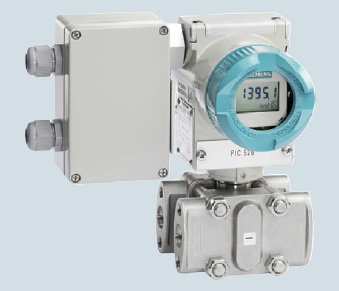

7MF499 SITRANS DS III pressure transmitters

Note on ordering:

The supplementary electronics can only be ordered as an

optional accessory for the corresponding pressure transmitter

Transmitters with type of protection "Intrinsic safety" and "Explosion- proof" may be installed within potentially explosive atmospheres (zone 1) or in zone 0. The transmitters are provided with an EC type examination certificate and comply with the corresponding harmonized European standards (ATEX).

The transmitters can be equipped with various designs of remote seals for special applications such as the measurement of highly viscous substances.

for measuring:

• Gauge pressure

• Absolute pressure

• Differential pressure

• Level

• Volume level

• Mass level

• Volume flow

• Mass flow

■Benefits

• High quality and service life

• High reliability even under extreme chemical and mechanical loads

• For aggressive and non-aggressive gases, vapors and liquids

• Extensive diagnosis and simulation functions

• Separate replacement of measuring cell and electronics without recalibration

• Minimum conformity error

• Good long-term stability

• Wetted parts made of high-grade materials (e.g. stainless steel, Hastelloy, gold, Monel, tantalum)

• Infinitely adjustable span from 0.01 bar to 700 bar (0.15 psi to 10153 psi) for DS III with HART interface

• Nominal measuring range from 1 bar to 700 bar (14.5 psi to 10153 psi) for DS III with PROFIBUS PA and

FOUNDATION Fieldbus interface

• High measuring accuracy

• Parameterization over control keys and HART or PROFIBUS PA, or FOUNDATION Fieldbus interface.

■Application

The pressure transmitters of the DS III series, can be used in industrial areas with extreme chemical and mechanical loads. Electromagnetic compatibility in the range 10 kHz to 1 GHz makes the DS III pressure transmitters suitable for locations with high electromagnetic emissions.

Pressure transmitters with type of protection "Intrinsic safety" and "Explosion-proof" may be installed within potentially explosive atmospheres (zone 1) or in zone 0. The pressure transmitters are provided with an EC type examination certificate and comply with the corresponding harmonized European standards

(ATEX).

Pressure transmitters with the type of protection "Intrinsic safety" for use in zone 0 may be operated with power supply units of category "ia" and "ib".

The transmitters can be equipped with various designs of remote seals for special applications such as the measurement of highly viscous substances.

The pressure transmitter can be programmed locally using the 3 control buttons or externally via HART or PROFIBUS PA or FOUNDATION Fieldbus interface.

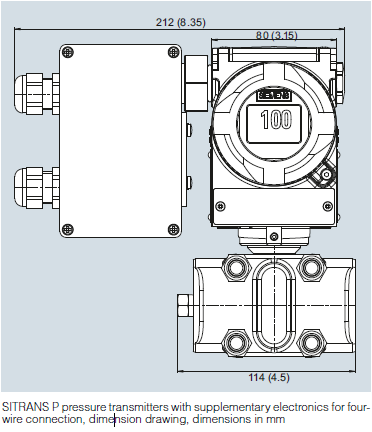

■Dimensional drawings
